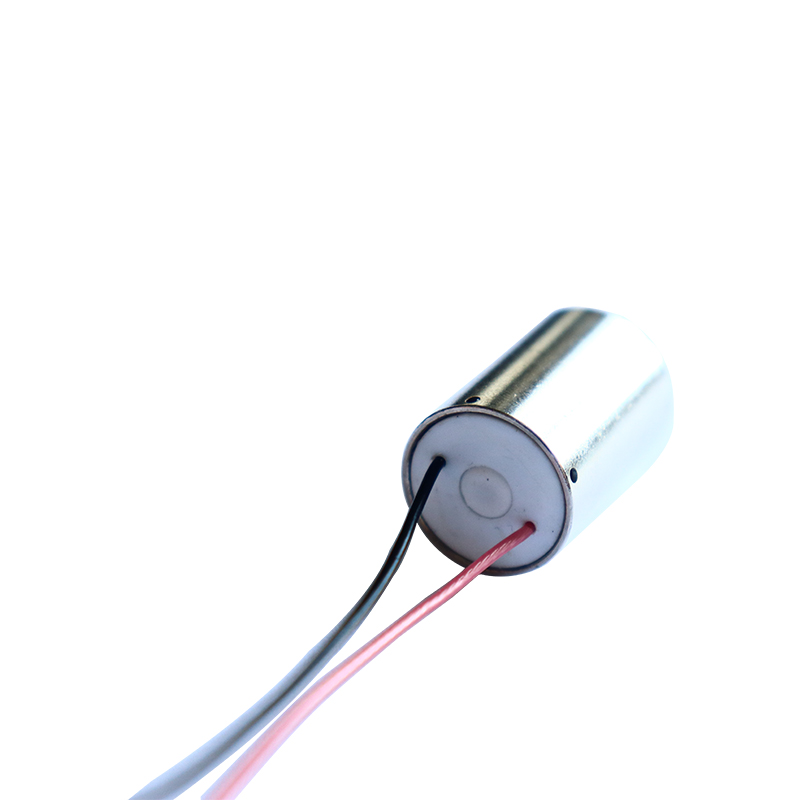

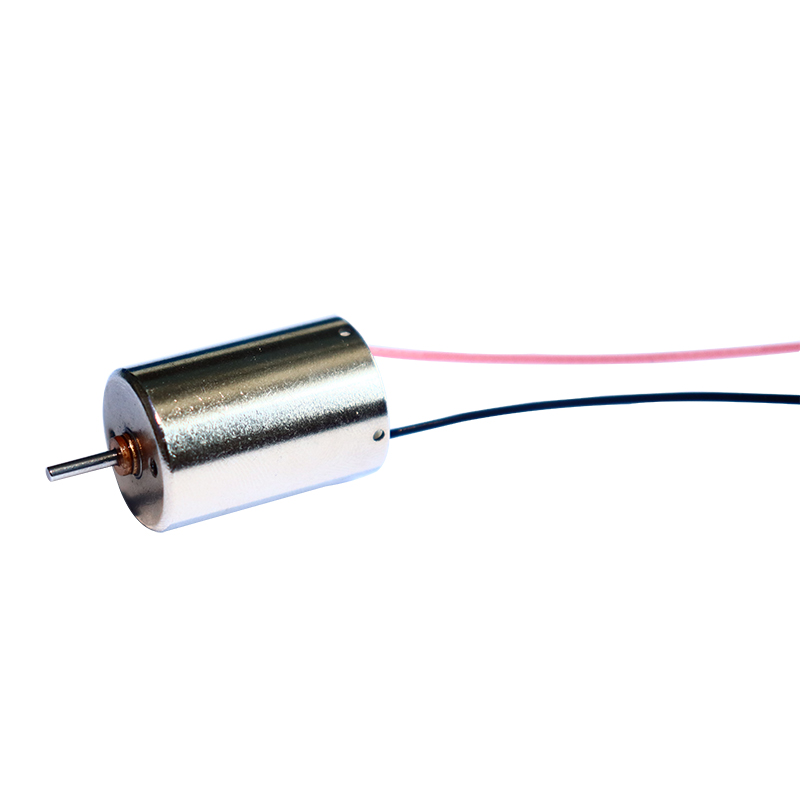

16mm Pretios Metal Brush DC Motor

depictio producti

Pro artificio faciendo, volumus tibi providere Ruixing 16mm Metallum Pretiosum Peniculus DC Motor. Signa alta ab exordio nostro statuimus et ad modernum conservatum solidam famam nobis meruerunt et adiuvaverunt nos ut magnum numerum novorum clientium et talentorum attraheret.

16SYK24.H.J Ars Parametri

MOTOR PARAMETER

Nominal Power	W	0.8
Ratum Voltage	Volt	6
Resistentia ±10%	Ohm	7.40
Non-load Mobilitatem±10%	rpm	7000
Non-onus Current ≤125%	ma	15
Celeritas Constant	rpm/V	1167
Torque Constant	mNm/A	8.04
Armen Current	ma	811
Armen Torque	mNm	6.52
Maximilianus. Efficientia	%	75
inductionem mH	mH*	0.136
Mechanica Tempus Constant	ms	5.95
Rotor Inertia	gcm²	0.53
Apud Max. Output
Current	ma	160
Torque	mNm	1.29
Celeritas	rmp	5619
Output	W	0.8

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+80℃
Max. licet tortuosus temperatus 155℃
numerus segmentorum commutatoris 5
Pondus 25g
Pretiosa Metal Peniculus
Max. profunda cochlea institutionem 2mm

16SYK34.H.J Ars Parameter

MOTOR PARAMETER

Nominal Power	W	2.0
Ratum Voltage	Volt	12
Resistentia ±10%	Ohm	10.00
Non-load Mobilitatem±10%	rpm	6500
Non-onus Current ≤125%	ma	15
Celeritas Constant	rpm/V	542
Torque Constant	mNm/A	17.42
Armen Current	ma	1200
Armen Torque	mNm	20.90
Maximilianus. Efficientia	%	79
inductionem mH	mH*	0.5
Mechanica Tempus Constant	ms	3.53
Rotor Inertia	gcm²	1.08
Apud Max. Output
Current	ma	200
Torque	mNm	3.48
Celeritas	rmp	5417
Output	W	2.0

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+80℃
Max. licet tortuosus temperatus 155℃
numerus segmentorum commutatoris 5
Pondus 32g
Pretiosa Metal Peniculus
Max. profunda cochlea institutionem 3mm
