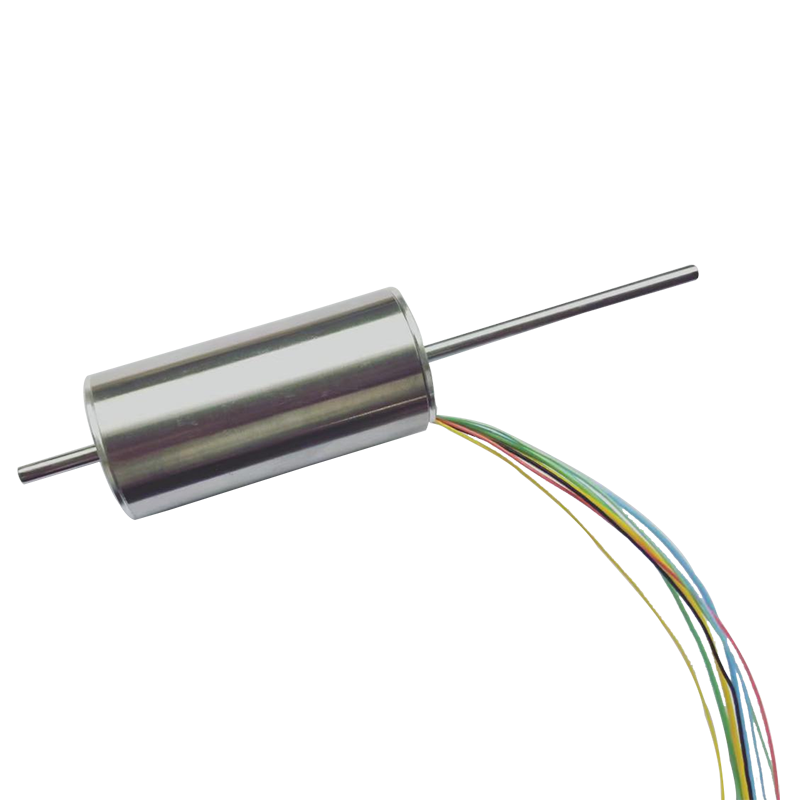

22mm Brushless DC Motor Cum Hall Sensor

depictio producti

Pro artificio faciendo, velimus providere vobis RuiXing 22mm Brushless DC Motor Cum Aula Sensor. Motor cum aula sensoris est motor electricus qui cum aula sensoris effectu instructus est, quod est genus sensoris magnetici qui praesentiam campi magnetici deprehendere potest. 22mm Brushless DC Motor With Hall Sensor typice conscenditur in proxima propinquitate ad hastile motoris vel rotoris rotantis et ad feedback motori motori de positione et velocitate rotoris praebendum adhibetur.

BLDC2248-4Pole Technique Parameter

MOTOR PARAMETER

Nominal Power	W	70.0
Ratum Voltage	Volt	24
Resistentia	Ohm	0.74
Nullus onus Celeritate	rpm	16500
Nullus onus Current	ma	300
Celeritas Constant	rpm/V	687.5
Torque Constant	mNm/A	13.8
Celeritate / Aureus constant	rpm/mNm	37
Armen Current	ma	32432
Armen Torque	mNm	447
Maximilianus. Efficientia	%	82
Inductione	mH*	0.055
Mechanica Tempus Constant	ms	2.18
Rotor Inertia	gcm²	5.62
Apud Max. Output
Current	ma	3380
Torque	mNm	47
Celeritas	rmp	14337
Output	W	70

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+100℃
Max.winding temperatus 155℃
● Numerus poliorum 2
numerus gradus III
● Pondus 110g
● Max.speed 18000rpm
Finis fabula 0.15
Clearance diametralis ≤0.025
Duc definition：

Flavium Motor Pin1;

Viride Motor flexum Pin2;

Blue Motor flexum Pin3;
Red +5V Pin4;
Nigrum GND pIN5;
Brown Hall sens Pin6 ;
Purpura Aula sens Pin7;
Glaucum Aula sens Pin8.

BLDC2248 Technique Parameter

MOTOR PARAMETER

Nominal Power	W	10.0	25.0	25.0	25.0
Ratum Voltage	Volt	24	24	24	36
Resistentia	Ohm	12	2.2	3.14	7.18
Nullus onus Celeritate	rpm	5500	9000	13000	13000
Nullus onus Current	ma	78	150	120	100
Celeritas Constant	rpm/V	229	375	542	361
Torque Constant	mNm/A	40.06	25.13	17.36	25.93
Celeritate / Aureus constant	rpm/mNm	68.64	32.83	97.97	99.99
Armen Current	ma	2000	10909	7643.3	5013.9
Armen Torque	mNm	80.13	274.12	133	130
Maximilianus. Efficientia	%	64	78	77	74
Inductione	mH*	1.8	0.154	0.25	0.77
Mechanica Tempus Constant	ms	2.82	1.35	3.79	3.18
Rotor Inertia	gcm²	3.72	3.72	3.68	3.03
Apud Max. Output
Current	ma	600	1300	1320	890
Torque	mNm	24.04	32.67	23	23
Celeritas	rmp	3850	7927.5	10432	10372
Output	W	10	27	25	25

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+100℃
Max.winding temperatus 155℃
Number polorum paria 1
numerus gradus III
Pondus 110g
Max.speed 18000rpm
Finis fabula 0.15
Clearance diametralis ≤0.025
Duc definition：

Flavium Motor Pin1;

Viride Motor flexum Pin2;

Blue Motor flexum Pin3;
Red +5V Pin4;
Nigra GND pIN5;
Brown Aula sens Pin6;
Purpura Pin7;
Glaucum Aula sens Pin8.
