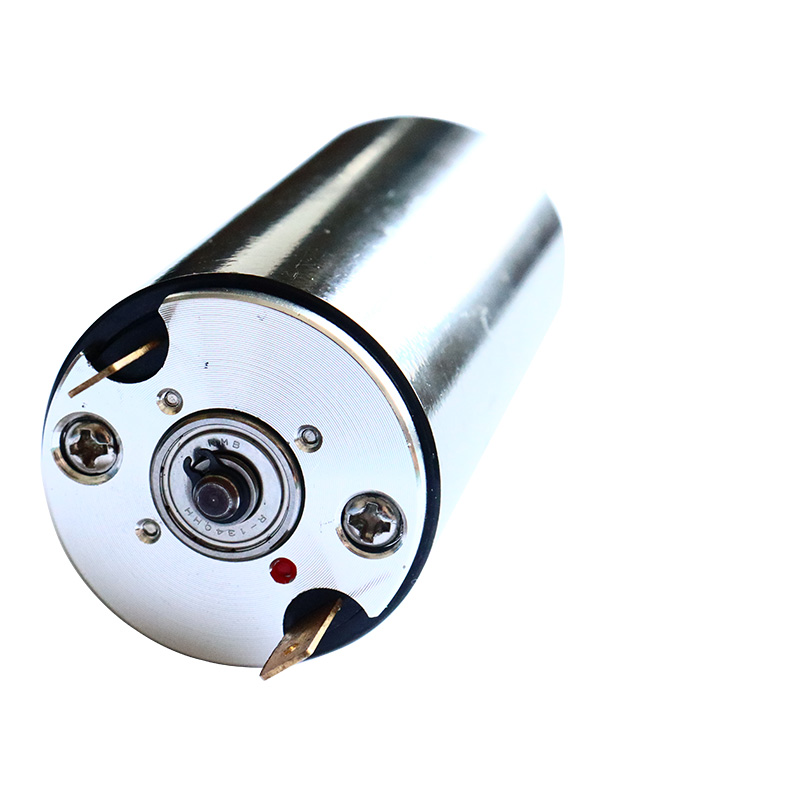

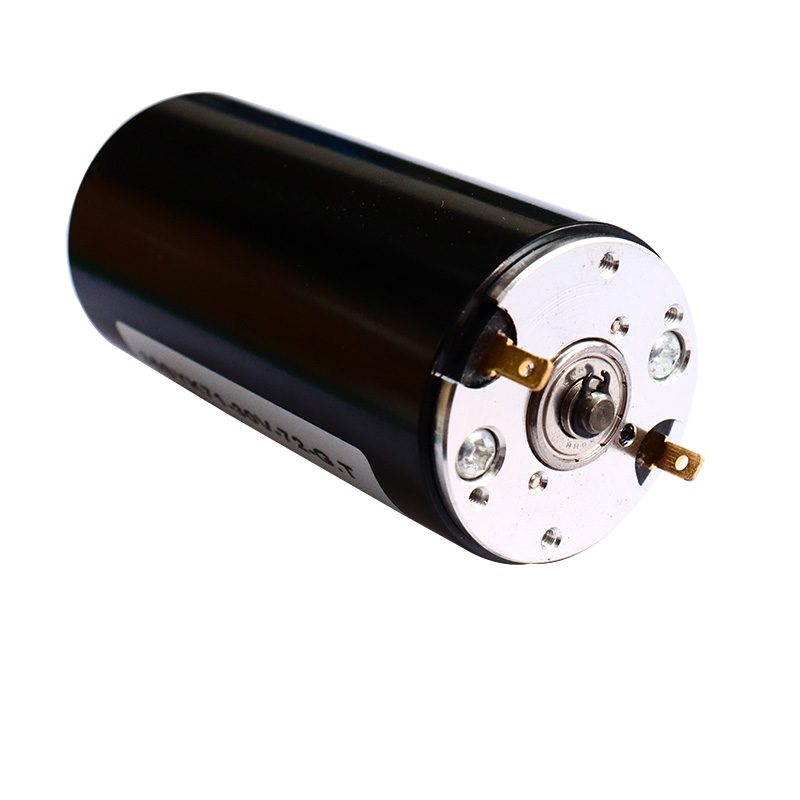

35mm Carbon Peniculus DC Motor

Cum professionalem fabricam, volumus tibi dare qualitatem altam RuiXing 35mm Carbon Peniculus DC Motor. RuiXing mercatum domesticum et negotiatores transmarinas habet. Procurator venditio copiose Latine loquitur ut bene communicet. Nostra mercatus praecipua venditio: America Septentrionalis, Asia Australis, Sina, Iaponia et Corea Meridiana et Europa australis, etc.

Mitte Inquisitionem

depictio producti

Cum professionalem fabricam, volumus tibi dare qualitatem altam RuiXing 35mm Carbon Peniculus DC Motor. Una commoda peniculi DC motorum carbonis est eorum sumptus humilis cum aliis generibus motorum comparatus, sicut Brushless DC motoribus. Tamen sustentationem periodicam desiderant ut perterget carbo carbonis reponere, quae super tempus defatigare potest et motorem efficientiam amittere vel omnino operari desinere.

35SYK53.G.T Ars Parameter

MOTOR PARAMETER

Nominal Power	W	40.0
Ratum Voltage	Volt	48
Resistentia ±10%	Ohm	4.64
Non-load Mobilitatem±10%	rpm	8000
Non-onus Current ≤125%	ma	120
Celeritas Constant	rpm/V	167
TorqueConstant	mNm/A	56.66
Armen Current	ma	10345
Armen Torque	mNm	586.14
Maximilianus. Efficientia	%	80
inductionem mH	mH*	0.89
Mechanica Tempus Constant	ms	8.49
Rotor Inertia	gcm²	59.27
Apud Max. Output
Current	ma	990
Torque	mNm	56.09
Celeritas	rmp	7017
Output	W	40

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+100℃
Max. licet tortuosus temperatus 155℃
Numerus segmentorum commutatorum 13
Pondus 235g
Carbon Peniculus
Max. profunda cochlea institutionem 4mm

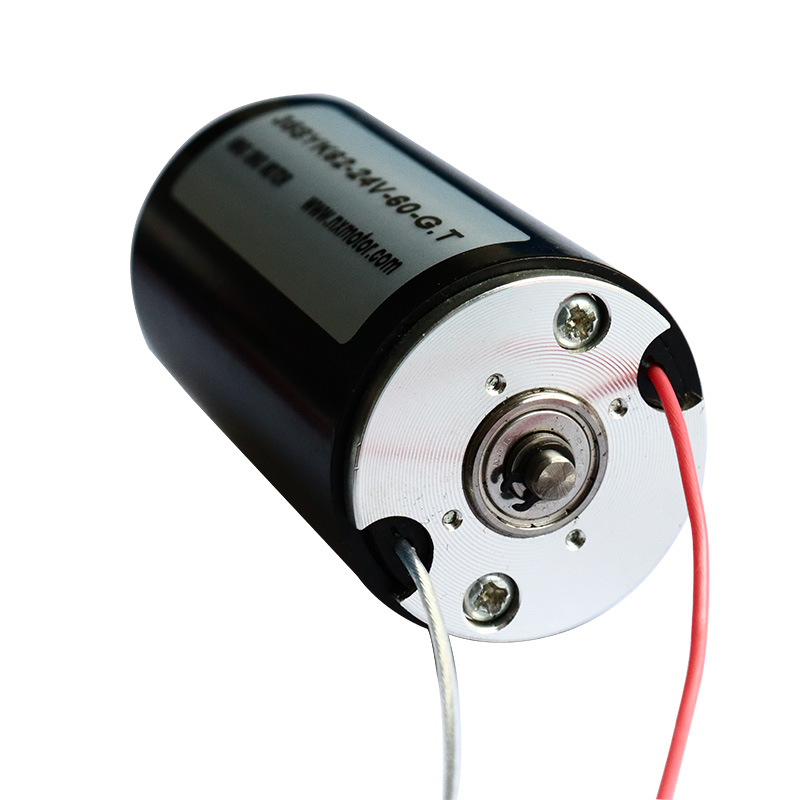

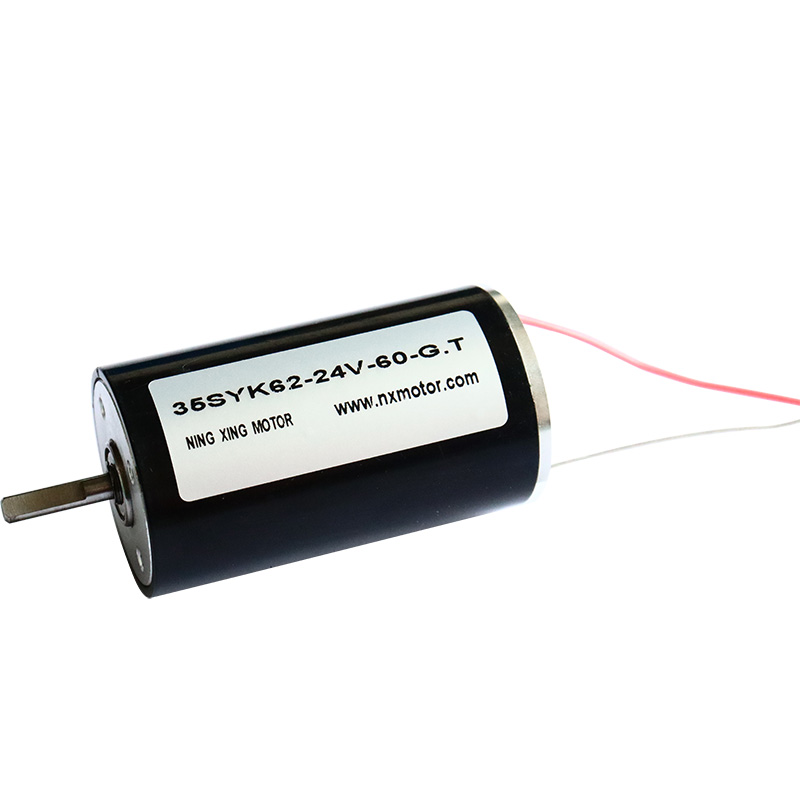

35SYK62.G.T Ars Parameter

MOTOR PARAMETER

Nominal Power	W	50.0	50.0	50.0	60.0
Ratum Voltage	Volt	24	24	28	60
Resistentia ±10%	Ohm	1.80	1.07	2.07	7.50
Non-load Mobilitatem±10%	rpm	4500	6000	5500	6000
Non-onus Current ≤125%	ma	125	150	130	50
Celeritas Constant	rpm/V	188	250	196	100
TorqueConstant	mNm/A	50.48	37.96	48.17	94.94
Armen Current	ma	13333	22430	13527	8000
Armen Torque	mNm	673.04	851.46	651.60	759.55
Maximilianus. Efficientia	%	82	84	81	85
inductionem mH	mH*	0.477	0.25	0.45	0.167
Mechanica Tempus Constant	ms	5.03	4.72	5.96	6.35
Rotor Inertia	gcm²	71.64	63.77	67.26	76.60
Apud Max. Output
Current	ma	2730	2420	2300	1230
Torque	mNm	137.80	91.87	110.80	116.78
Celeritas	rmp	3471	5353	4565	4925
Output	W	50	50	50	60

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+100℃
Max. licet tortuosus temperatus 155℃
Numerus segmentorum commutatorum 13
Pondus 275g
Carbon Peniculus
Max. profunda cochlea institutionem 4mm

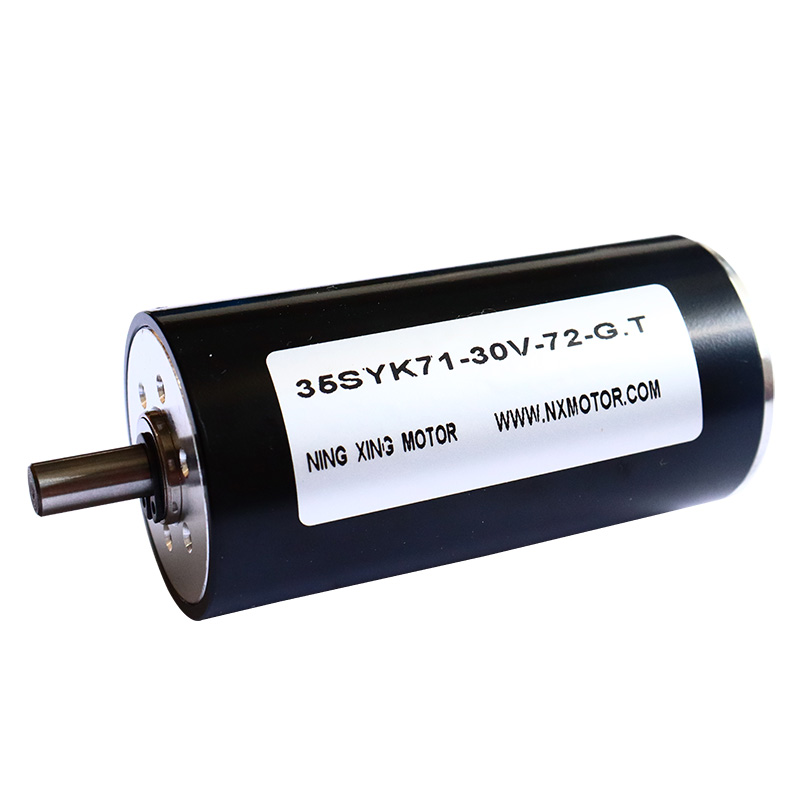

35SYK71.G.T Ars Parameter

MOTOR PARAMETER

Nominal Power	W	90.0	90.0	10.0	40.0	90.0
Ratum Voltage	Volt	24	30	48	48	48
Resistentia ±10%	Ohm	0.49	1.02	58.00	7.00	2.40
Non-load Mobilitatem±10%	rpm	7.500	7.200	1.600	4.400	7.500
Non-onus Current ≤125%	ma	230	200	16	65	100
CeleritasConstant	rpm/V	313	240	33	92	156
TorqueConstant	mNm/A	30.43	39.54	281.08	103.24	60.84
Armen Current	ma	49980	29412	828	6857	20000
Armen Torque	mNm	1490.43	1162.89	232.62	707.92	1216.82
Maximilianus. Efficientia	%	87	84	74	81	86
inductionem mH	mH*	0.145	0.24	13	1.9	0.6
Mechanica Tempus Constant	ms	5.00	5.24	5.87	4.26	5.98
Rotor Inertia	gcm²	94.65	80.59	81.22	65.24	92.39
Apud Max. Output
Current	ma	4200	3540	390	1020	2180
Torque	mNm	127.80	139.97	109.62	105.30	132.63
Celeritas	rmp	6857	6143	846	3633	4683
Output	W	90	90	10	40.0	90.0

MENSURA

MOTOR CHARACTERISTIC

Ambiens Temperature Range -40～+100℃
Max. licet tortuosus temperatus 155℃
Numerus segmentorum commutatorum 13
Pondus 310g
Carbon Peniculus
Max. alta cochlea institutionem 5mm
